KEY FEATURES

This document outlines the core technical and commercial arguments for deploying the EX-150 CMZ LED platform within the professional exhibition and trade show sector.
01
Co-Developed with Industry Leaders
Designed in close collaboration with top-tier professionals in the trade show sector, this highperformance LED platform is purpose-built to solve the exact logistical and visual demands of modern exhibition rigging.
02
Premium Product Presentation (High-Fidelity CRI)
Products must look perfect on the show floor. Achieving an exceptional CRI of > 97 across multiple color temperatures, backed by impressive deep-red R9 values, this fixture ensures vibrant, true-to-life rendering of textiles, vehicles, and retail displays.
03
Flawless Stand Uniformity
Features an ultra-tight MacAdam ellipse (SDCM as low as 1.1), guaranteeing that dozens of rental fixtures rigged across a large exhibition stand will produce an identical, uniform light output without distracting color variations.
04
Press & Social Media Ready (100% Flicker-Free)
Fully EMC compliant (EN 55015/EN 61547 ) and tested to Performance Criterion A. It delivers a flawless, flicker-free light field, ensuring that press coverage, corporate aftermovies, and visitors' smartphone videos look perfectly clean.
05
Zero-Maintenance Rental Flee
Engineered entirely without vulnerable mechanical fans. Passive cooling eliminates dust buildup inside the electronics from dirty exhibition halls, completely removing the need for costly routine maintenance between rental cycles.
06
Discreet & Silent Operation
The total absence of fan noise and electrical coil whining makes it the perfect fixture for premium exhibition booths, conference zones, and quiet meeting areas where acoustic istractions are unacceptable.
07
Instant Hot Restrike for Stand Reliability
Unlike legacy lighting technologies that require critical cool-down periods after a power trip (a frequent issue at trade fairs), the EX-150 CMZ delivers 100% light output instantly, ensuring the booth is never left in the dark.
08
Maximized Rental ROI (Eliminating Consumables)
Engineered specifically for the rigorous dry-hire market, this robust LED platform entirely eliminates the expensive, recurring costs of replacing degrading bulbs. By removing consumable costs and reducing maintenance downtime, it drastically accelerates your return on investment per rental cycle.
09
Sustainable Exhibition Compliance
Eliminates the hazardous handling of mercury associated with old discharge lamps. Its energy profile and lack of toxic components align perfectly with the increasingly strict environmental compliances demanded by modern European exhibition centers.
10
Three Dedicated Kelvin Profiles (2700K, 3500K, 4000K)
The EX-150 CMZ features a straightforward switch that allows technicians to select directly between 2700K, 3500K, and 4000K. This provides exhibitors with precise control over the booth's atmosphere — from a warm, golden glow at 2700K to a more neutral and crisp light at 4000K. The fixture maintains exceptional color rendering (CRI >97) across the spectrum and delivers an impressive output of over 15,000 lumens at the higher temperatures.
11
Flexible Manual Zoom (28° - 48°)
The fixture is equipped with a robust, manual zoom function, allowing the beam angle to be adjusted seamlessly between 28° and 48°. Relying on a manual rather than a motorized zoom removes a potential point of electronic failure, further increasing reliability in the demanding dry-hire market. This optical flexibility ensures the exact same fixture can be deployed for tight spotlighting of specific displays (28°) or broad illumination of large wall surfaces (48°).
TECHNICAL SPECIFICATIONS
CONTROL AND PROGRAMMING
Intensity: Not applicable - On/Off
operation only
Control Protocol: Not applicable - No DMX or
advanced control
Control Interface : Simple switch for selecting between
2700K, 3500K and 4000K

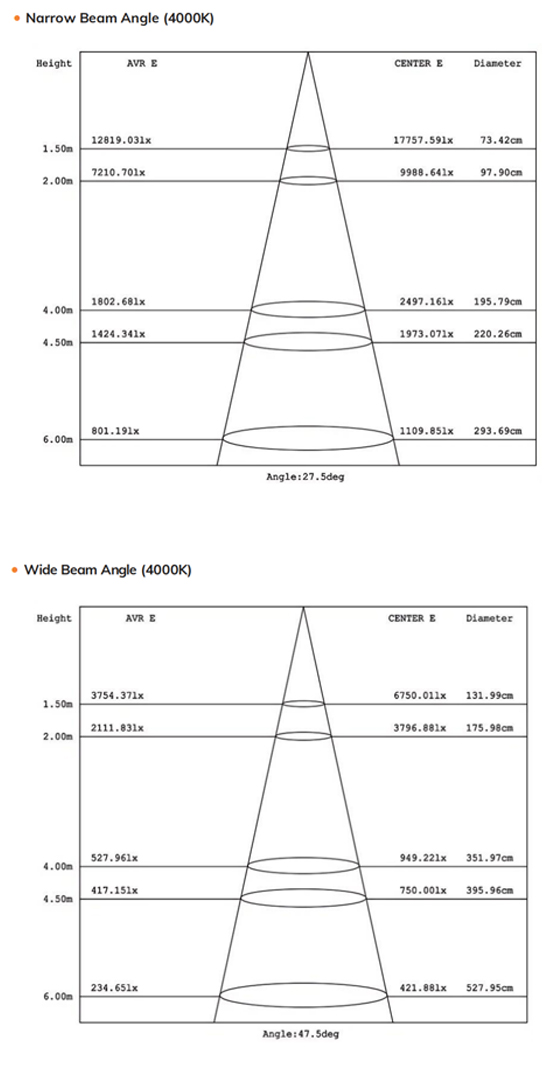

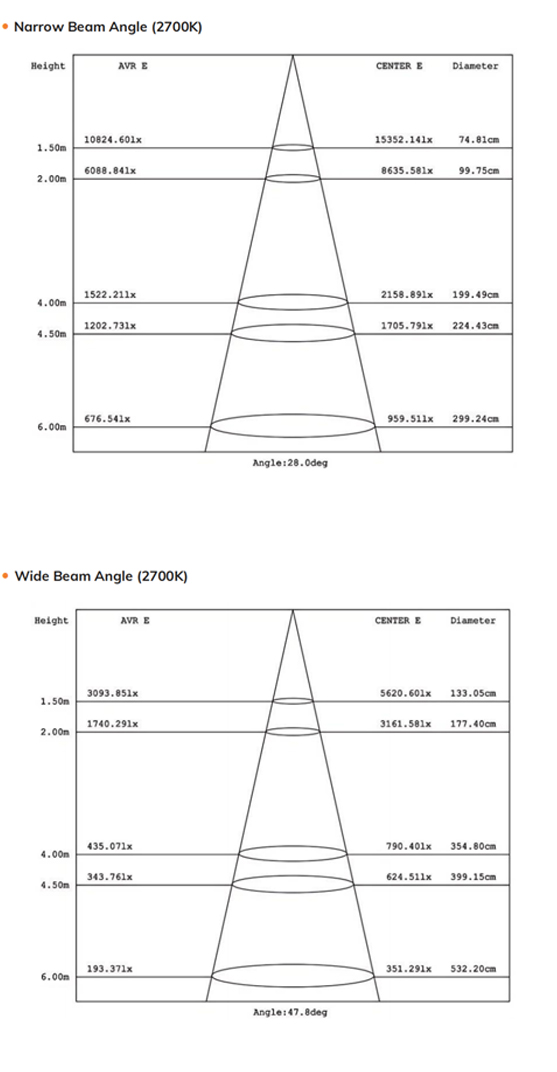

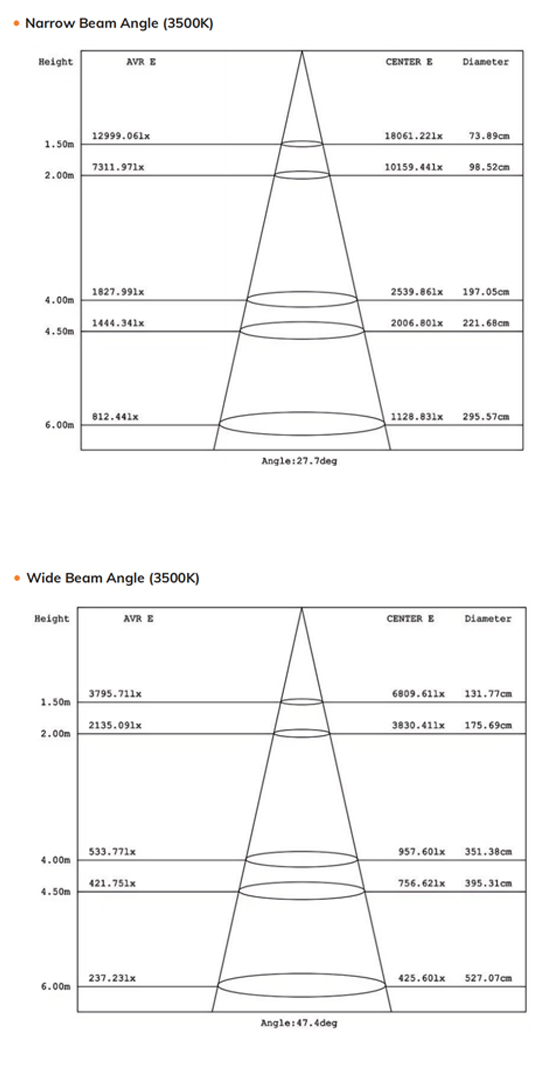

PHOTOMETRIC
Peak Light Intensity @ 1.5mtr (4 ,9 ft) @2700K
(narrow):
15352 lx
Peak Light Intensity @ 1.5mtr (4,9 ft) @2700K
(wide):
5620 lx
Peak Light Intensity @ 1.5mtr (4,9 ft) @3500K
(narrow):
18061 lx
Peak Light Intensity @ 1.5mtr (4,9 ft) @ 3500K
(wide):
6809 lx
Peak Light Intensity @ 1.5mtr (4,9 ft) @4000K
(narrow):
17757 lx
Peak Light Intensity @ 1.5mtr (4,9 ft) @4000K
(wide):
6750 lx
LED Peak Luminous Flux@2700K (narrow): 12600 Im
LED Peak Luminous Flux@2700K (wide): 12900 Im
LED Peak Luminous Flux@3500K (narrow): 15200 lm
LED Peak Luminous Flux@3500K (wide): 15500 lm
LED Peak Luminous Flux@4000K (narrow): 15600 lm
LED Peak Luminous Flux@4000K (wide): 15800 lm
LED Peak Efficiency: 95 115 Im/W / 115 Im/W
Color Rendering Index (CRI): >97
Color Rendering Index (CRI R9): >88
CCT: 2700K / 3500K / 4000K
Beam Angle: Manually adjustable 28°-48°
LED Lifetime: 50,000 hours (Minimum)
Beam Field Diameter @ 28°
(narrow):
@ 3mtr (9,8ft): ~1.1mtr (3,7ft)
in diameter
@ 5mtr (16,4ft):~1.9mtr (6,1ft)
in diameter
Beam Field Diameter @ 48°
(wide):
@ 3mtr (9,8ft): ~2.1mtr (6,8ft)
in diameter
@ 5mtr (16,4ft): ~3.5mtr (11,4ft)
in diameter
CONSTRUCTION
Protection Rating: IP21
Impact Resistance: IK07
Housing Material: Aluminum, Plastic
Surface Finish: ED coating + powder coating
Housing Color: Black (RAL9004)
Lens Material: Borosilicate glass
INSTALLATION
Orientation: Any
Mounting: 3 x 12mm holes in yoke bracket
Safety Wire: Attachment point for safety wire
ETL: UL Std. 1598 (Pending)
CE: Yes
RoHS: Yes
ENVIRONMENTAL
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
INCLUDED ITEMS
User Manual: 1 pcs
WARRANTY
Fixture: 2 years
ORDERING INFORMATION
EX-150 CMZ Black
THERMAL
Operating Temperature: 0° C to +35°C
Maximum Ambient Temperature (Ta max.): 35°C
Cooling System: Passive
Minimum distance to normal flammable materials: 0.5 mtr (16.40 feet)
Minimum distance to illuminated surface: 0.5 mtr (16.40 feet)
Automatic temperature control (Safety feature): Yes
ELECTRICAL SPECIFICATIONS
Power 150W maximum power consumption
Input Voltage: 100 -240 V, 50/60Hz
Power Factor: >0.97 @230V
Inrush Current: 25A Peak <5mS
Number of products on MCB of 16A type C: 10

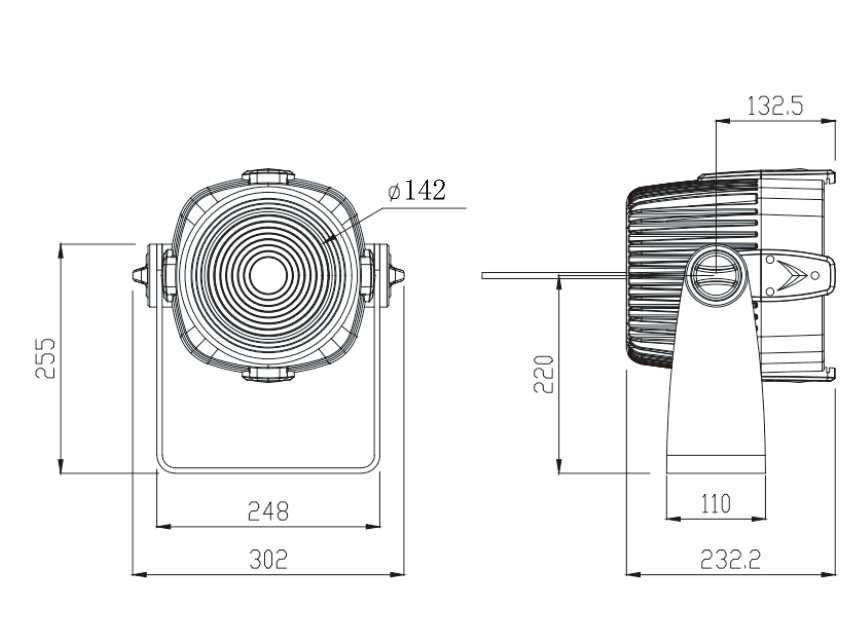

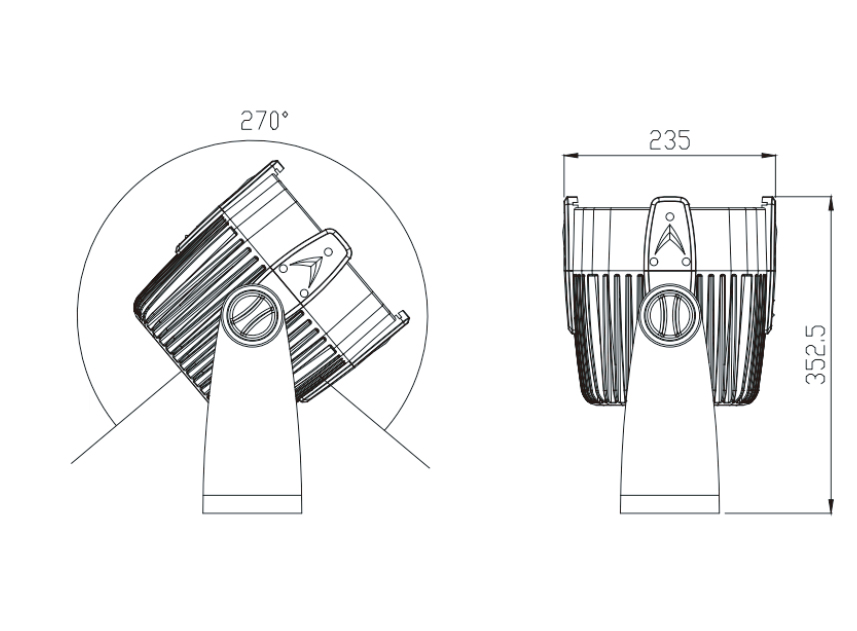

PHYSICAL DIMENSIONS
Depth: 23.2 cm (9.13 inch.)
Width: 30.2 cm (11.88 inch.)
Height: 35.3 cm (13.90 inch.)
Weight: 7.2 kg (15.84 Lbs.)
Tilt Range: 0° - + / -135°
PHOTOMETRIC
